TAILORED TO YOUR NEEDS

Models & Variations

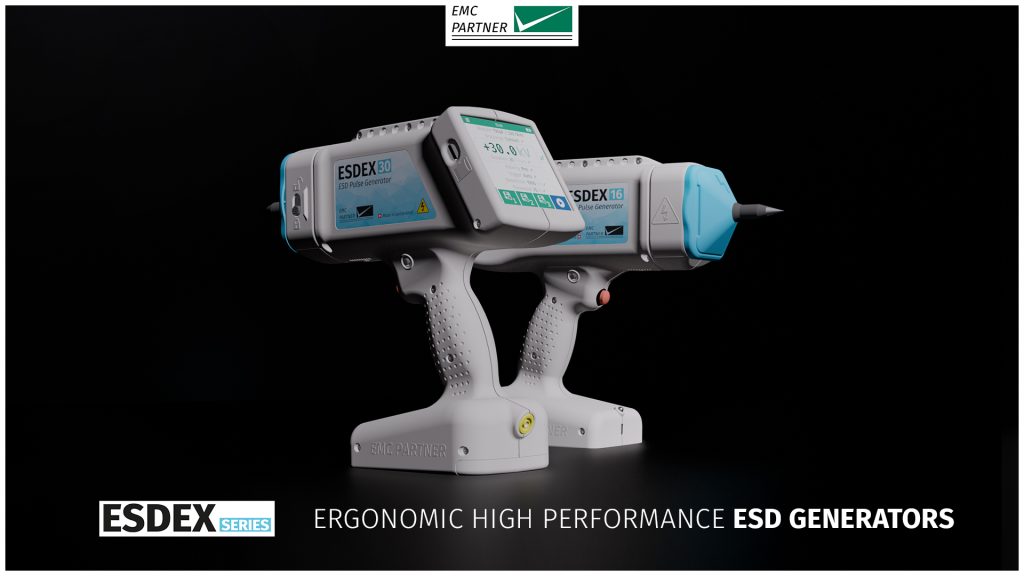

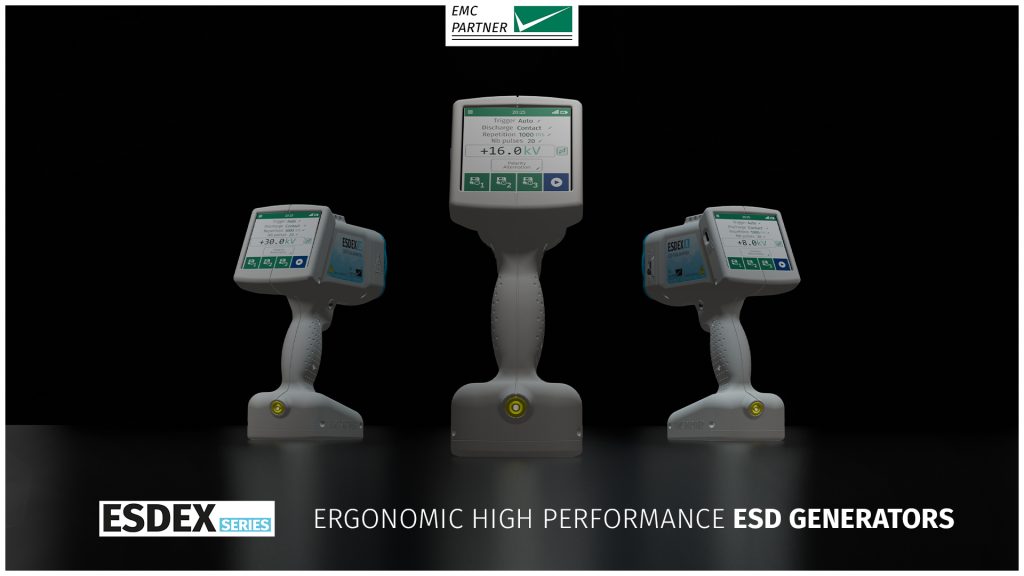

The ESDEX series is designed and tailored to give users the freedom to select a generator configured to their exact needs.

There are three product types — 8 kV, 16 kV, and 30 kV — and customers can choose from a range of RC networks, options, features, and accessories to create a solution that perfectly meets their requirements. Depending on your type of business or application—whether a lab, performing specific standard tests or R&D testing—there is an ESDEX generator perfectly suited to your needs.

112181%20ESDEX8%203D%20120-090-0263c989 ESDEX Series - ESD generators up to 30 kV

112182%20ESDEX16%203D%20120-090-3d2ab266 ESDEX Series - ESD generators up to 30 kV

112182%20ESDEX16%203D%20120-090-3d2ab266 ESDEX Series - ESD generators up to 30 kV

ESDEX8

8 kV ESD generator with 150 pF / 330 Ω RC network.

Easy and simple operation, ideal for carrying out R&D tests and quality testing during development phases.

ESDEX16

16 kV ESD generator with exchangeable RC networks.
The ideal solution for various product standard testing up to 16 kV. Upgradeable to 30 kV.

ESDEX30

30 kV ESD generator with exchangeable RC networks.
Suitable for higher voltage test level requirements such as automotive testing, and larger testing laboratories that require more flexibility.
Scale%20-%20GREEN%20-%20emcp_Zeichenflache%201-ce9a2fc8 ESDEX Series - ESD generators up to 30 kV PERFECT BALANCE
A perfectly engineered balance point allows effortless movement in any direction or angle, ensuring a comfortable, strain-free ESD testing experience.		RC%20-%20GREEN%20-%20emcp_Zeichenflache%201-3d1562eb ESDEX Series - ESD generators up to 30 kV EXCHANGEABLE TIPS & RC NETWORKS
Quick and easy exchange of RC networks & test tips for each required test type and application.
sidebuttons%20-%20GREEN%20-%20emcp_Zeichenflache%201-cc09cd85 ESDEX Series - ESD generators up to 30 kV TRIGGER & SIDE BUTTONS
Ergonomic low resistance round shape trigger for comfortable multi-angle triggering and programmable side buttons for assigning various functions.		Light%20-%20GREEN%20-%20emcp_Zeichenflache%201-bb8db57f ESDEX Series - ESD generators up to 30 kV INTEGRATED TIP LED
An integrated LED light helps pinpoint the exact EUT contact point, enhancing precision and saving time.
usb-c%20-%20emcp_Zeichenflache%201-1e14f748 ESDEX Series - ESD generators up to 30 kV USB-C PORT
For fast charging, data transfer & reporting		touch%20-%20GREEN%20-%20emcp-291c5e9e ESDEX Series - ESD generators up to 30 kV 4“ TOUCHSCREEN
The large 4” capacitive touchscreen offers a wide viewing angle, ensuring clear and easy readability from any position.
Ergonomic%20-%20GREEN%20-%20emcp-6e8881e1 ESDEX Series - ESD generators up to 30 kV ERGONOMIC GRIP
Carefully designed „one size fits all“ grip ensures the generator sits naturally in the hand without causing strain.		battery%20-%20GREEN%20-%20emcp_Zeichenflache%201-66534f2f ESDEX Series - ESD generators up to 30 kV RECHARGEABLE BATTERY
An integrated rechargeable battery supports up to 12 hours of testing. Fast charging reaches 80% in just 80 minutes via the USB-C power port.
RC%20-%20GREEN%20-%20emcp_Zeichenflache%201-3d1562eb ESDEX Series - ESD generators up to 30 kV AUTOMATIC RC RECOGNITION
The unit automatically detects the type of inserted RC module.		RC%20-%20GREEN%20-%20emcp_Zeichenflache%201-3d1562eb ESDEX Series - ESD generators up to 30 kV BLEED-OFF FUNCTION
Automatically discharges residual energy after each impulse.
RC%20-%20GREEN%20-%20emcp_Zeichenflache%201-3d1562eb ESDEX Series - ESD generators up to 30 kV REDUCED PROXIMITY EFFECT
Guaranteed accurate results and operation safety.		RC%20-%20GREEN%20-%20emcp_Zeichenflache%201-3d1562eb ESDEX Series - ESD generators up to 30 kV SELF CHECK
Check generator functionality, including charge voltage, discharge relay, and internal discharge circuit, and store and report results.
optionsgrid%20-%20GREEN%20-%20emcp_Zeichenflache%201-221f1773 ESDEX Series - ESD generators up to 30 kV HIGH QUALITY COMPONENTS
Maximum safety, reliable, error free and reproducible results.		Power%20-%20GREEN%20-%20emcp_Zeichenflache%201-334be43e ESDEX Series - ESD generators up to 30 kV FIRE MODE
Generate ESD impulses repeatedly in AD (Air Discharge) mode up to 500 Hz.
Power%20-%20GREEN%20-%20emcp_Zeichenflache%201-334be43e ESDEX Series - ESD generators up to 30 kV REDUCED INTERFERENCE EMISSION
Prevent unintended radiated emission that could affect EUT.

Wide range of applications

The ESDEX series is a highly flexible solution capable of covering multiple standards across industrial, automotive, avionics, defence, and other application areas. It enables easy compliance with different test requirements, ensuring versatility and reliable performance. Along with the suitable ESDEX generator, a wide range of accessories are available for each application.

industrial2-5793aec7 ESDEX Series - ESD generators up to 30 kV

Industrial / IEC 61000-4-2

Meet requirements for IEC 61000-4-2 for industrial and commercial applications, ranging from medical to household, electronics, and more.

automotive2-a171dc20 ESDEX Series - ESD generators up to 30 kV

Automotive / ISO 10605

Compliance with ESD testing requirements of ISO 10605 for automotive applications, IEC-based e-mobility testing, and additional OEM applications.

defence2-0f322c85 ESDEX Series - ESD generators up to 30 kV

Defence / MIL-STD-461 CS118

Compliance with MIL-STD-461 CS118 for defence and military applications, covering equipment and electronics.

avionics-8a23605d ESDEX Series - ESD generators up to 30 kV

Avionics / RTCA DO-160 Section 25

Supports RTCA DO-160 Section 25 ESD testing for airborne equipment, covering onboard electrical and electronic devices and related applications.
