A SWISS ORIGINAL
Founded 1994 in Laufen, North-west Switzerland, EMC PARTNER AG are experts in high voltage impulse technology. Our reputation has been built on delivering high quality, innovative solutions for Electromagnetic Compatibility (EMC) to an international customer base.
Our long-standing commitment to the EMC industry does not stop at designing test equipment. Our roots go back to the very beginning of EMC with over 30 years unbroken participation in standard committees. A tradition that continues today through our active participation in the International Electro technical Commission (IEC), the Swiss National Committee of IEC and CENELEC (CES), the Society of Aerospace Engineers (SAE) and the European Organisation for Civil Aviation Equipment (EUROCAE).
As a global manufacturer of EMC test systems we respect national and international standard requirements. ISO 17025 is recognized worldwide as a benchmark for quality. EMC PARTNER AG is accredited by the Swiss Calibration Service (SCS 0146), to perform calibrations on all products we manufacture. The Swiss Accreditation Service (SCS) is a signatory to ILAC, the International Laboratory Accreditation Cooperation, which extends our accreditation to an international customer base. This ensures that our customers have access to the best and most reliable test equipment.
Our products encompass commercial and industrial immunity testing, indirect lightning on aircraft and component testing among others. We are aim to extend our product line with test equipment for new and evolving technologies.
Our clients and our commitment to the EMC market are elements in defining who we are.
EMC PARTNER AG, a true Partner for EMC test solutions today, tomorrow and in the future
Impulse insulation tester 1.2/50 µs from 500V to 30kV. Breakdown detection at generator or test object. Report generation and control from colour touch panel. Selectable impedance up to 500 ohm
- Stable impulse form at EUT
- Programmable breakdown detection
- Long duration production testing
- Function upgrades, protect investment
- Direct interface with DSO

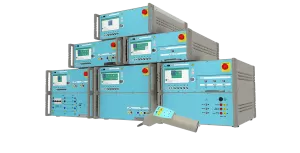

Modular test system with colour touch screen and intuitive software. Integrated help with graphics guides user through fast and efficient setup and operation. Suitable for IEC 61000-4-x testing.
- ESD
- EFT/Burst 5/50ns
- IEC Surge / CWG. 1/2/50µs
- Telecom Surge. 10/700µs
- Ringwave
- Common Mode
- Differential Mode
- Magnetic Field
- Dips AC/DC
DO-160 and MIL-STD-461G level 3 indirect lightning generator. All 6 waveforms for PIN, single/multiple stroke and multiple burst.
- Lightning Voltage
- Lightning Current
- Voltage Spike
- Induced Spike
Handheld ESD Simulator with modular discharge networks up to 30kV
- Handheld
- AA Battery operated
- modular discharge networks
- Consumer, Automotive, Military
Portable modular multi-function impulse generator with plug-in for MIL-STD-461, DO-160 applications. Test capability is easily extended with the seven plug-in modules. Couplers and calibration accessories complete the solution
- CS 106 – Voltage Spike
- CS 115 – Bulk cable injection
- CS 116 – Damped sinusoidal transients
- CS 06 Spike slow & fast
- DO-160 – Section 17, 19
Compact generator for Damped Oscillatory Wave testing (DOW). Integrated three-phase CDN for Slow and Fast waves. Magnetic Field output for 1meter or 2meter coil. Testing for IEC 60255-26, IEC 60060-1, IEC 62052-11, IEC 61000-4-10, IEC 61000-4-18 and more. Can be extended with insulation test impulses up to 8kV.
- Slow-DOW, 100kHz and 1MHz
- Fast-DOW, 3MHz, 10MHz, 30MHz
- Insulation impulse, 0.5J / 500ohm, 1.2/50µs
